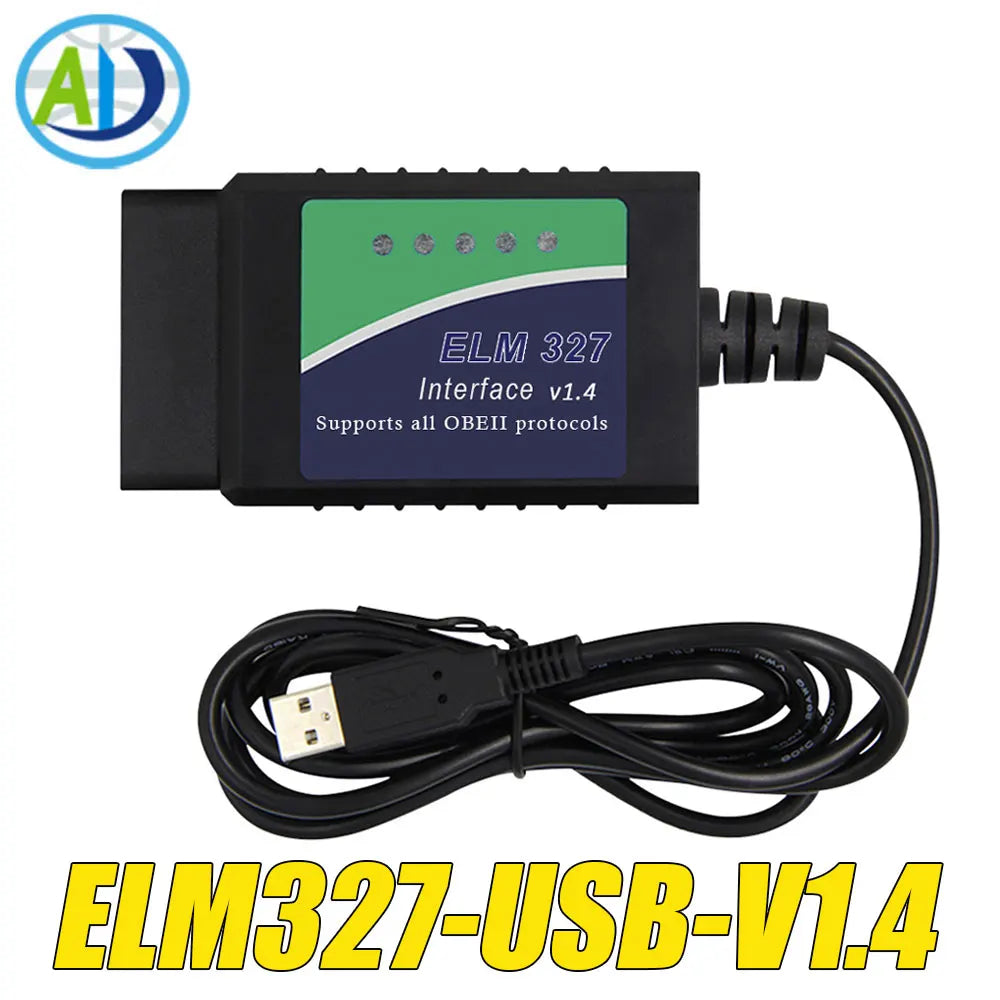

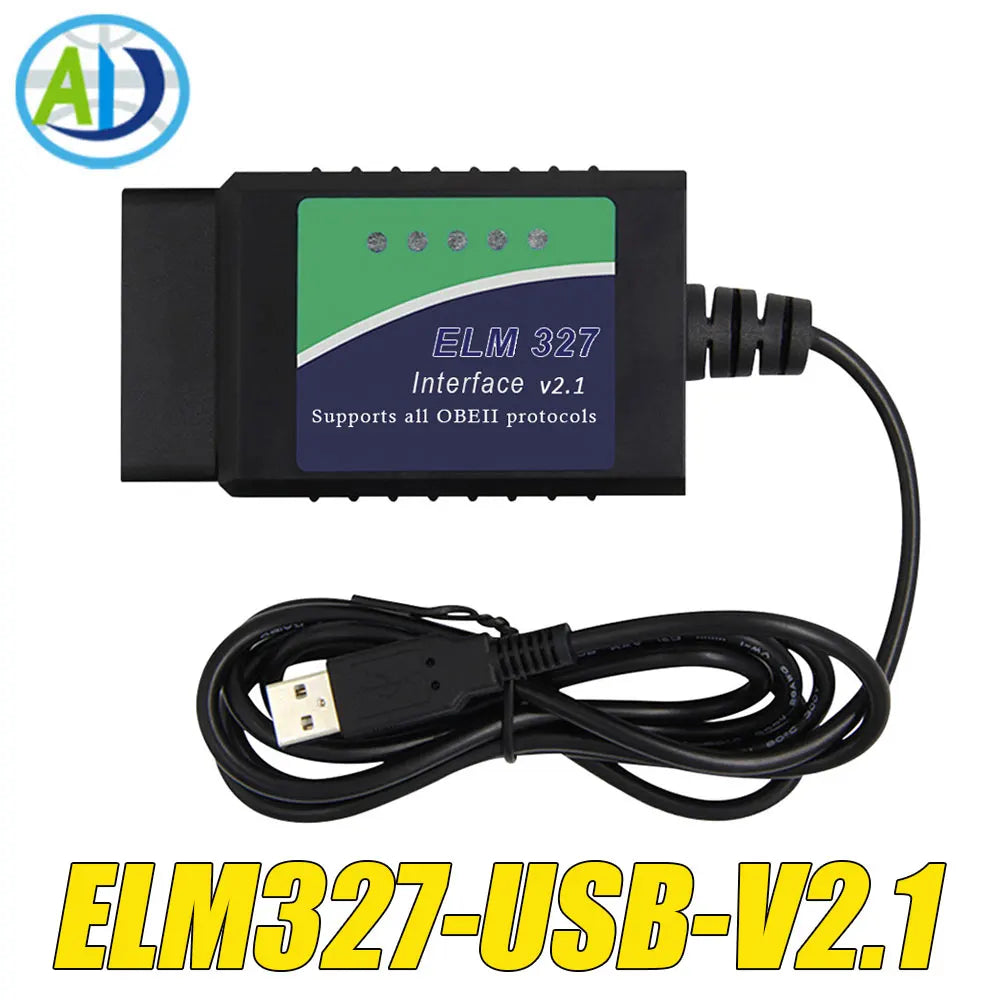

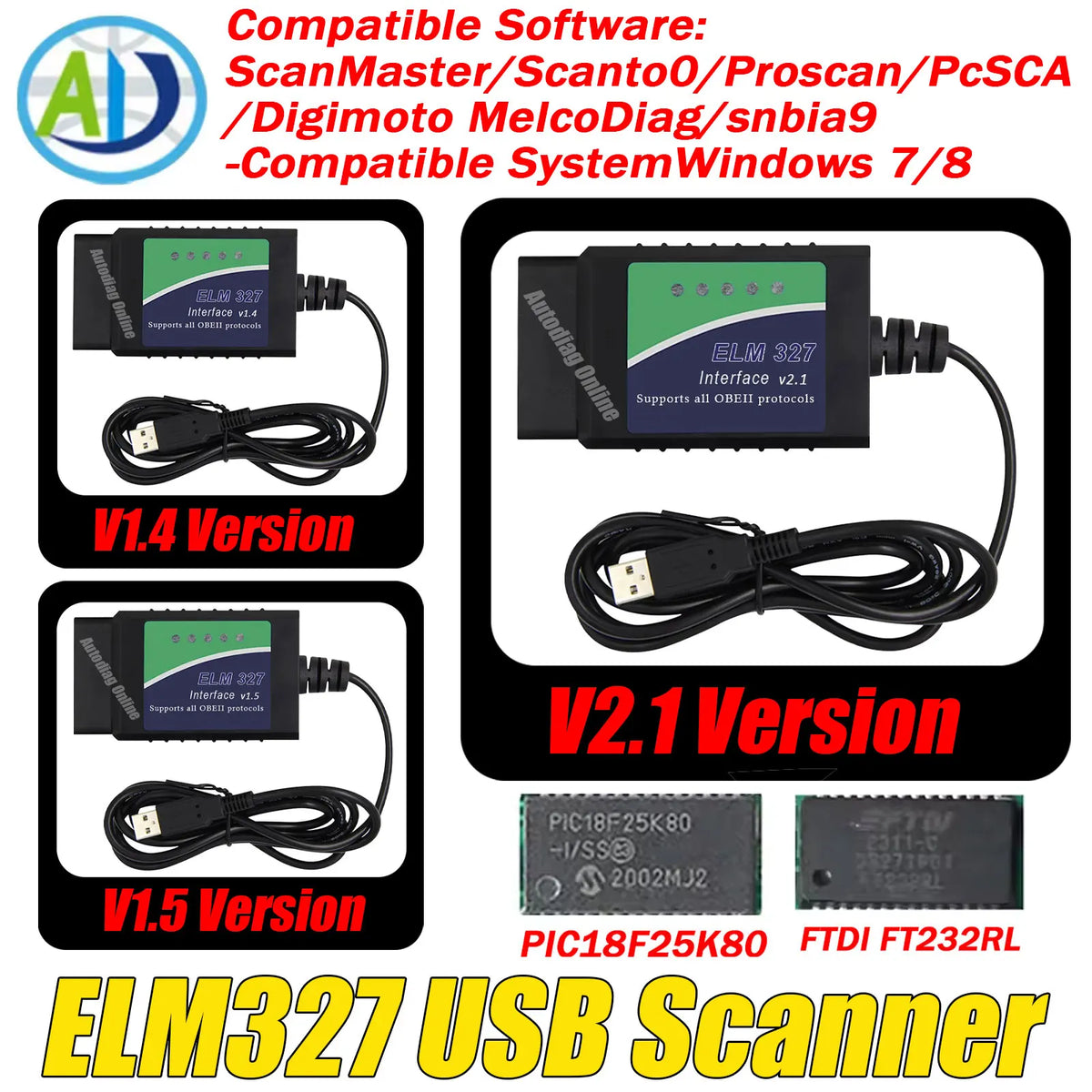

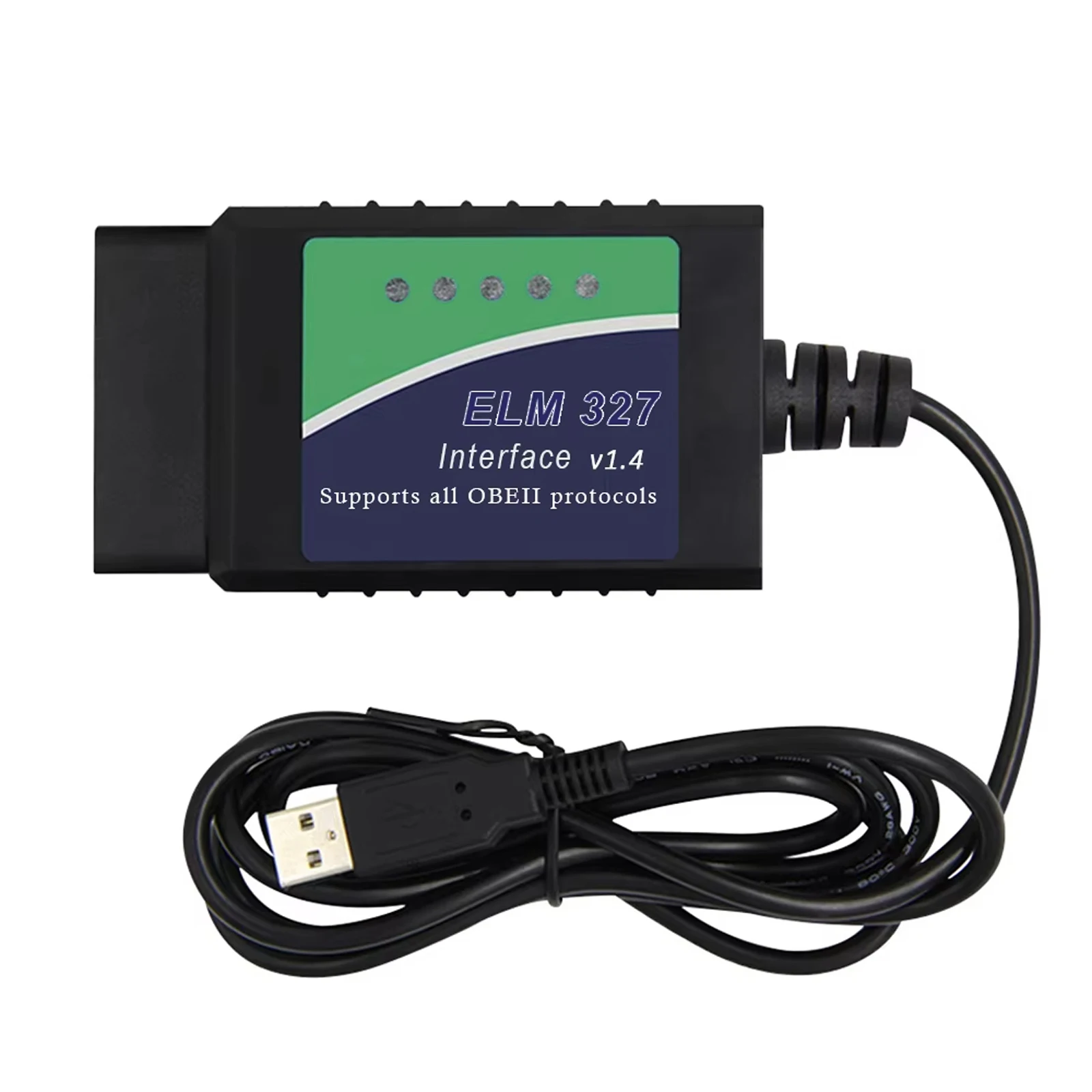

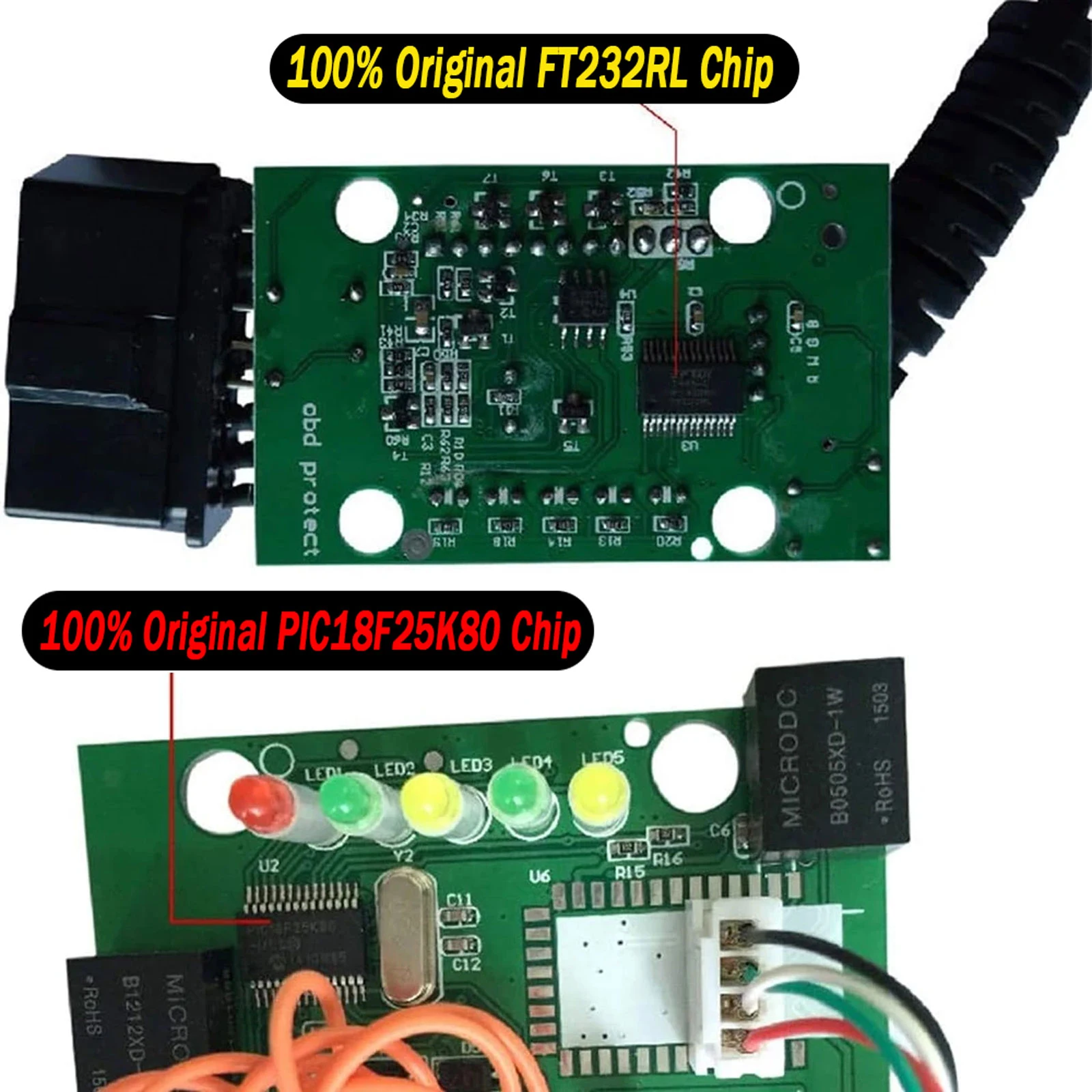

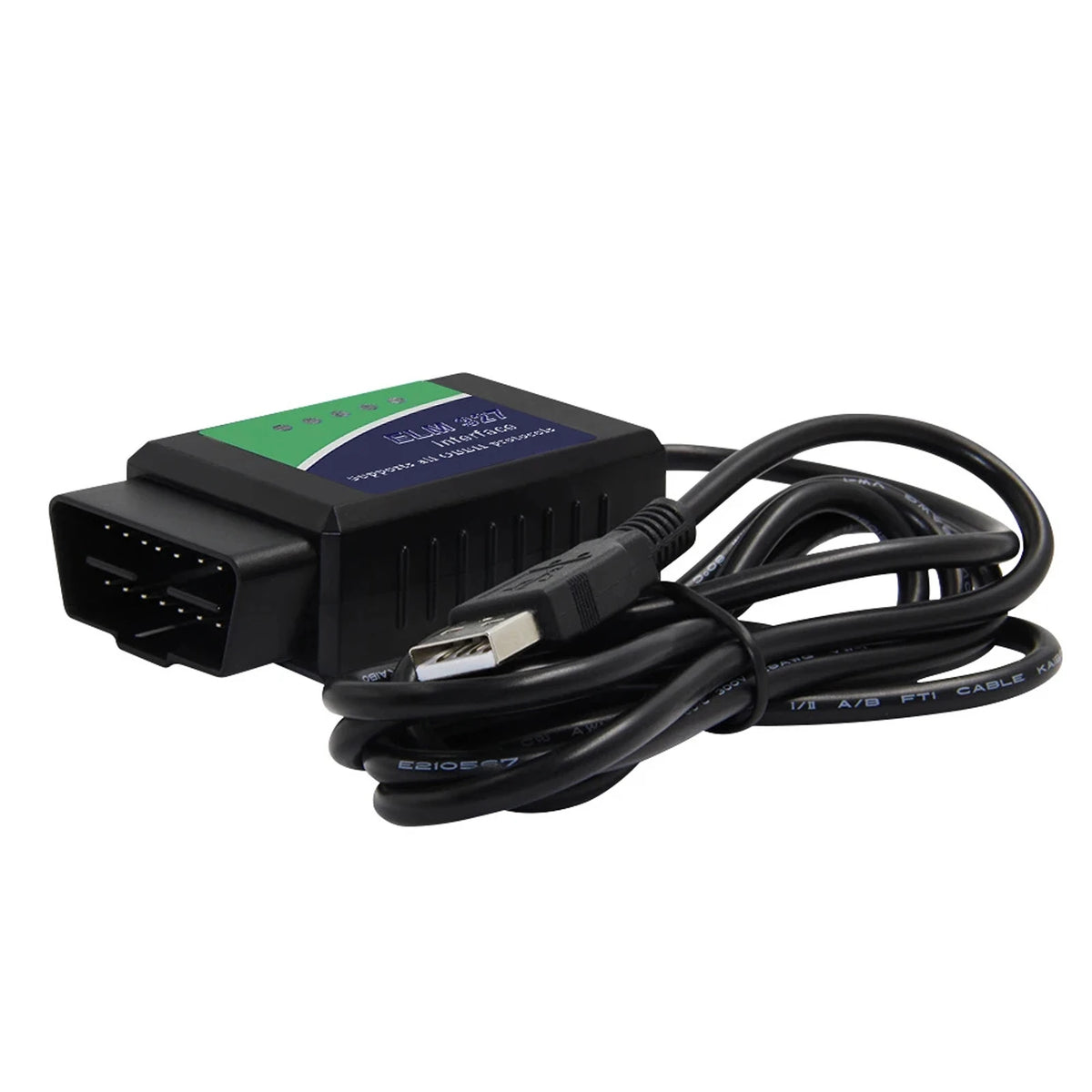

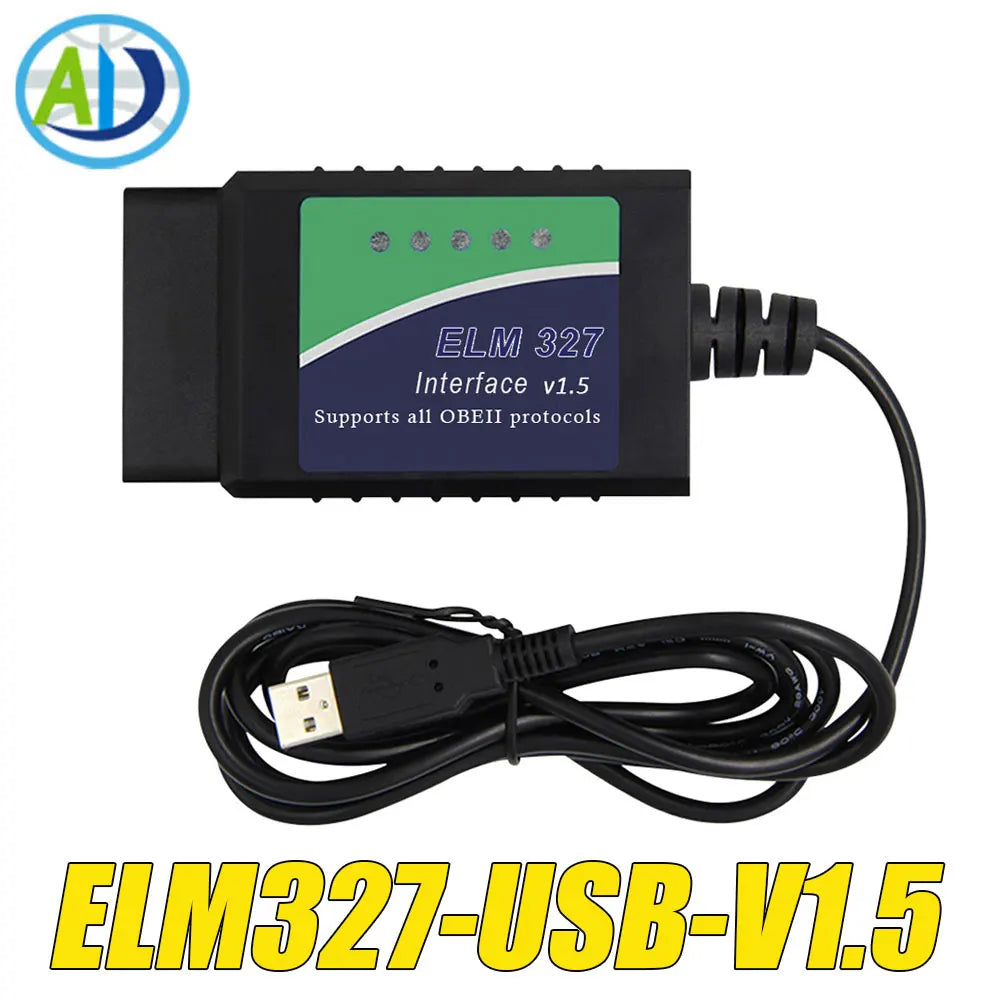

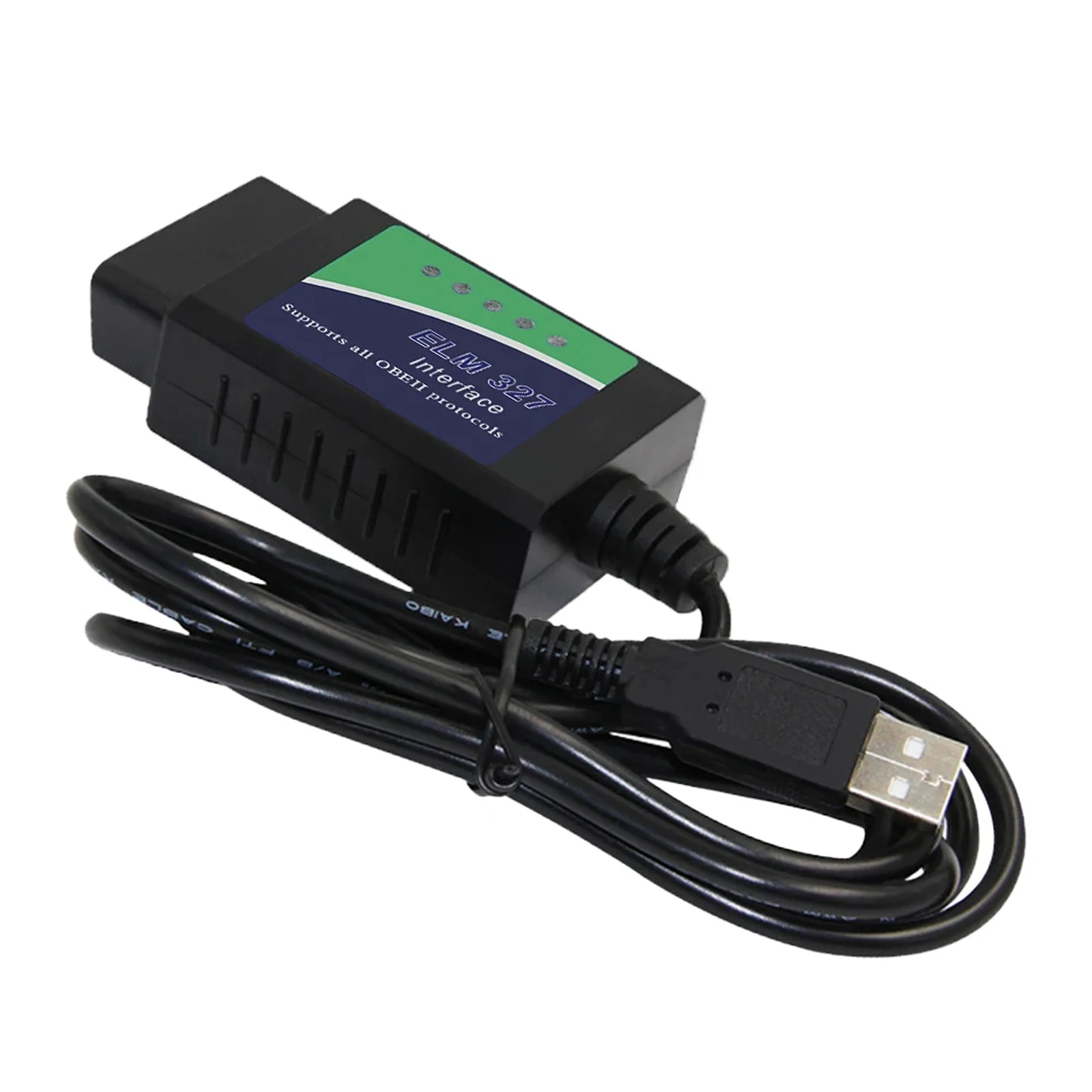

OBD2 Diagnostic Scanner Original PIC18F25K80 FTDI FT232RL OBDII Interface Scanner For ScanTool/MultiEcuScan ELM327 USB Scanner

Compatible systems:

Software support platform: Windows 7/8

Supported protocols:

1. SAE J1850 PWM(41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. IS0 9141-2 (5 baud init, 10.4 Kbaud)
4. IS0 14230-4 KWP (5 baud init, 10.4 Kbaud)(KWP2000)
5. IS0 14230-4 KWP (fast init, 10.4 Kbaud)(KWP2000)
6. IS0 15765-4 CAN (11bit lD, 500 Kbaud)
7. IS0 15765-4 CAN (29bit ID, 500 kbaud)
8. IS0 15765-4 CAN (11bit lD, 250 Kbaud)
9. ISO 15765-4 CAN (29bit lD, 250 Kbaud)
10. IS0 9141-2

Product Features:

The ELM327 obd2 scanner supports OBDII protocol models produced after 1996 (including VPW, PWM, ISO, KWP 2000, CAN protocol). You can connect the product to a laptop or desktop computer and use it to read the trouble code, clear the car's trouble code, and display the sensor's data stream (such as speed, water temperature, fuel consumption, etc.).

Note: Vans, Jettas, 2000,3000 and some Jeeps, SUVs are not supported by this elm 327 obd2 adapter. WINCE navigator system is not working.

Functions:

1. Read codes;
2. Erase codes;
3. Read the engine real-time dynamic data stream, including:
1.Engine speed per minute (RPM);
2.The calculated load value;
3.Coolant temperature;
4.Fuel system status;
5.Speed of vehicle;
6.Short-term fuel situation;
7.Long-term fuel condition;
8.Intake manifold pressure;
9.Fuel injection lead time;
10.Intake temperature;
11.Air flow velocity;
12.Absolute throttle position;
13.Oxygen probe voltage associated with short-term fuel status;
14.Fuel system status;
15.Fuel pressure;
16.Fuel consumption monitoring.

Supported Models:

The OBDII compliant vehicles referernce as below:
1996 or newer model year vehicle made in the United States
Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep

2004 or newer model year vehicle made in the European Union

Fit for Alfa Romeo, Fit for SAAB, Fit for Acura, Fit for Opel, Fit for Audi, Fit for Seat, Fit for Peugeot ,Fit for Renault after 2009 year,doesn't support Clio 2
Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu,Fit for Land Rover
Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar

2008 or newer model year vehicle made in the Asian Union

Fit for KIA , Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai,Fit for Dacia,Fit for Lexus ,Fit for Mazda
Fit for Nissan, Fit for Subaru , Fit for Suzuki, Fit for Toyota

Fit for Ducati motorcycle

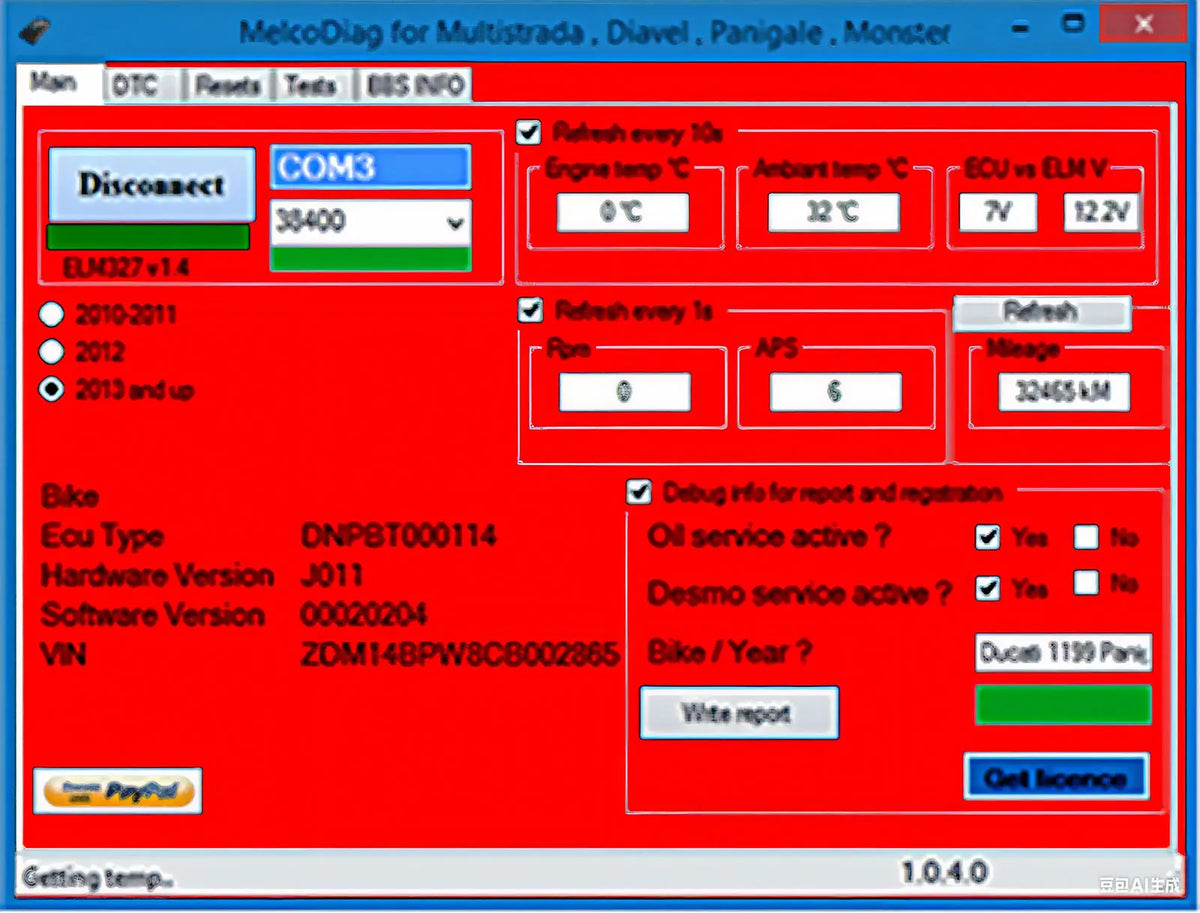

Compatible with MelcoDiag for Ducati Motorcycles(Software not included) This ELM327 USB Cable OBD2 Diagnostic Scanner with FTDI FT232RL Chip PIC18F25K80 v1.4 will come complete with MelcoDiag for ducati motorcycles.(NOTE:Software not included)

1.Download and install the MelcoDiag application on your computer.
2.Connect the obd2 cable for ducati 4pin connector to the CAN bus connector on your bike.
3.Plug the USB end of the cable into an available USB port on your computer. The red LED on your ELM327 diagnostic scanner should be lit.
4.Turn your ignition key to the “ON” position. Do not start your bike.
5.Double-click on your MelcoDiag desktop icon to open MelcoDiag.Start your diagnosis.

Compatible software (Requires separate download from Google Play Store or Apple App Store, some may require purchase):

1）FORScan was developed for reading and viewing information about the on-board network of Ford,Mazda,Lincoln and Mercury vehicles.
Supported cars:
-Ford,Lincoln,Mercury models of 1996-2022MY(some models of 1994-1995MY also supported)
-Mazda 1996-2022MY. Attention:Mazda 7G models (new Mazda 3,CX-30,MX-30,CX-50 etc) are support partially or not supported!
2）PCMSCAN is a fully featured generic OBDII scanner and diagnostic tool that supports a wide variety of OBDII hardware interfaces. It allows viewing, charting, logging and playback of diagnostic data in real time via the vehicle's OBDII diagnostic data port. It also allows viewing of vehicle Diagnostic Trouble Codes (DTC's), Freeze Frame data, and other vehicle information.
-Supports 1996* and newer vehicles whether it be US, Asian, or European.
-Supported OBDII protocols: SAE-J1850 (PWM and VPW), ISO-9141, ISO-14230 (KWP2000), and ISO-15765 (CAN).
3）MultiEcuScan：This is a dealer level diagnostic tool for most model of Alfa Romeo,Fiat and Lancia vehicles and also covers some models of Chrysler,Dodge,Jeep and Suzuki. Also have support for some Ducati motorcycle models.
4）JpDiag-Melcodiag：the new generation of diagnostic tool.
-Compatible with the latest Multistrada , Diavel , Monster or Panigale.
5）Scantool
6）Proscan
7）ScanMaster
8）Digimoto
